Pulse dust collector drum, purify work environment efficiently. Imported hydraulic pressure motor, simulation and optimization of the fan blade-shaped line, To provide equipment efficient, stable performance; fine filter and fine filter design, special environmental protection, efficient filter materials, removal efficiency of 99% and superb Auto Control System, to achieve automatic dust discharge, reflect the people-oriented design concept.

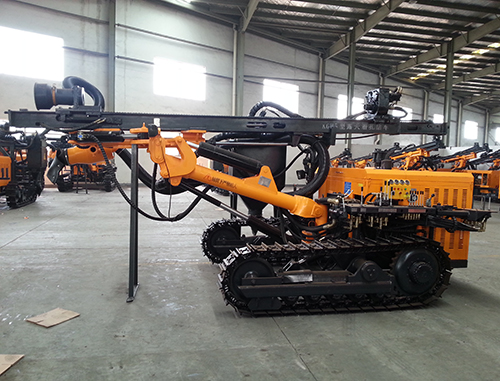

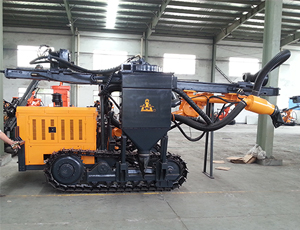

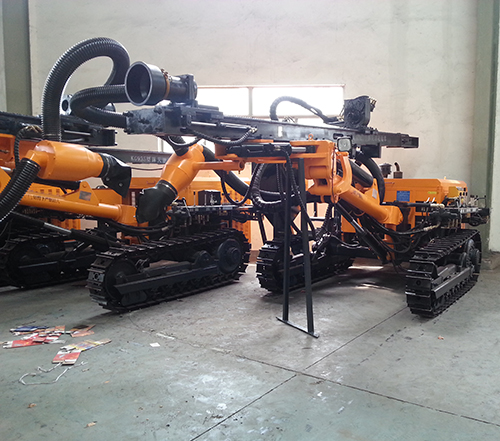

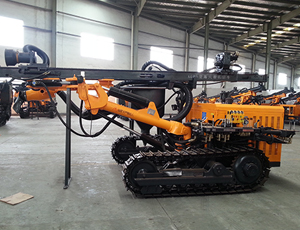

Technical Parameters of KGH5/YCGH5 Surface DTH Drilling Rig
Model |
KGH5 |
Rock rigidity |
f=6-20 |
Drilling diameter |
Φ105～125mm |
Economic drilling depth |
25m |
Rotation speed |
0-100r/min |
Rotary torque |
2400N•m |
Lifting force |
25000N |
Propulsion mode |
Cylinders - Chain |
Feed length |
2000mm |
Travel speed |
0-2.0km/h |
Climbing capacity |
30° |
Ground clearance |
320mm |
Total weight |
6500kg |
Dimensions |
5400×2330×2020mm |
Guide tilt |
180° |
Guide swinging angle degrees |
180°Right50º(15º) left50º(95º) |
Drill boom pitch angle |
Look down25° Looking up 45° Altogether 70° |
Drill boom arm angle |
Left 45° right 45° Altogether 90° |
Maximum frame float |
±10° |
GuideCompensation length |
900mm |
Power |
YC4D80(58kW2200r/min) |
Drill rod |
Φ76×3000mm |
Pression d’air de travail |
1.0-2.4MPa |
Air consumption |
12-24m³/min |
